Short Description
Premium industrial-grade 95KW Universal Hydraulic Test Bench, engineered for rigorous comprehensive performance testing of heavy-duty axial piston pumps, hydraulic motors, control valves, and cylinders. Power-packed with a 95KW high-efficiency prime mover and equipped with state-of-the-art CAT (Computer-Aided Testing) data acquisition systems, this heavy-duty testing station provides precise digital evaluation of volumetric efficiency, torque variations, internal leakage, and pressure-flow characteristics under maximum continuous pressures up to 420 bar. Perfect for heavy equipment overhaul facilities, mining workshops, and fluid power service networks.
Key Highlights
-
95KW Severe-Duty Prime Power: Driven by a heavy-duty high-torque motor, providing ample power to comprehensively test mainstream large-displacement pumps (such as Rexroth A10VSO, A4VG, A11VO, Parker PV, and Eaton series) up to their maximum load capacities.
-
Dual-Circuit High-Pressure Testing Framework: Configured to deliver precise testing environments up to 350 bar (continuous) and 420 bar (intermittent peak spikes), effortlessly diagnosing internal clearances and boundary lubrication states under severe heavy-duty simulations.
-
Advanced Intelligent Computer-Aided Testing (CAT): Integrated with real-time digital sensors tracking flow, pressure, RPM, torque, and oil temperature. Generates instant, certified PDF test charts and performance curves to provide your global clients with absolute assurance of a flawless repair.
-
Precision Thermal Management System: Outfitted with an automatic high-capacity water/air cooling loop that maintains optimal oil viscosity ($40^\circ\text{C} – 55^\circ\text{C}$) during extended full-load testing cycles, preventing cavitation and safeguarding your expensive testing components.
Technical Specification Matrix
| Technical Parameter | Specification Data (95KW Execution) |
|---|---|
| Main Drive Motor Power | 95 KW (127 HP) / Customizable Voltage (380V/415V/460V, 50/60Hz) |
| Maximum Testing Pressure | Continuous: 350 bar (35 MPa) / Intermittent Peak: 420 bar (42 MPa) |
| Maximum Flow Delivery Rate | Up to 400 L/min – 600 L/min options available |
| Drive Speed Range | 0 – 3000 RPM (Variable Frequency Drive / VFD Precision Control) |
| Testing Target Capabilities | Axial Piston Pumps, Vane Pumps, Gear Pumps, Hydraulic Motors & Control Valves |

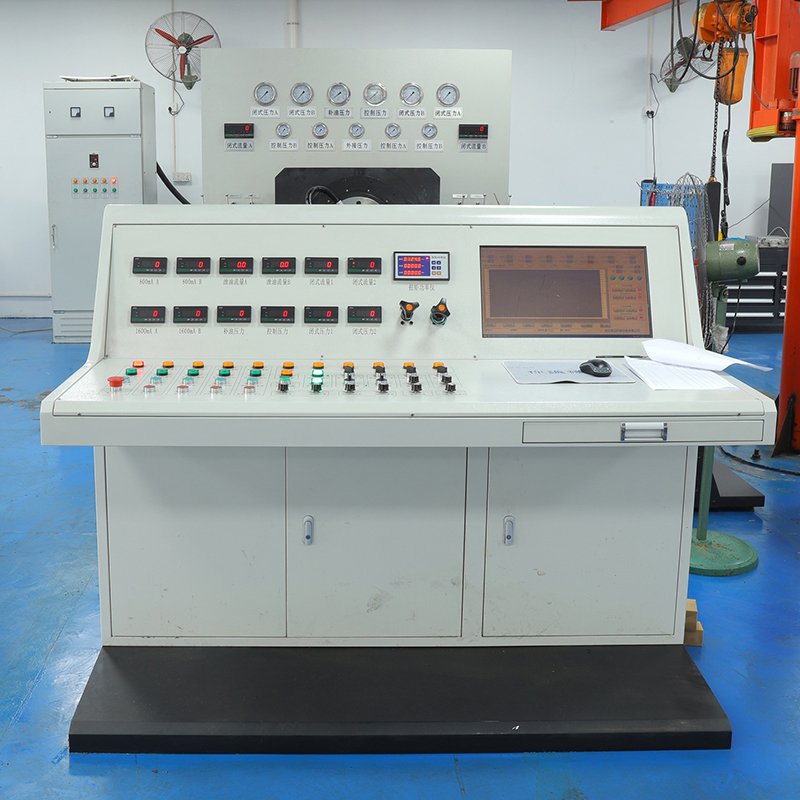

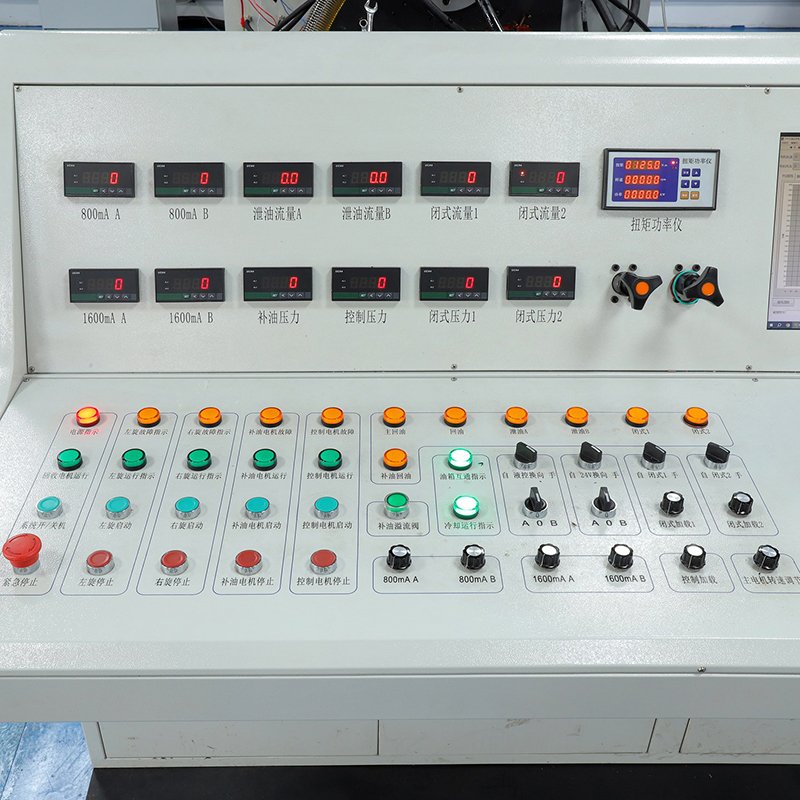

| Data Display & Control | PLC Automatic Control with Windows-based CAT Software & Touch Screen Panel |
| Filtration Rating Efficiency | High-precision pressure line filtering up to NAS 6 / ISO 4406 16/14/11 clean standard |
FAQ
Q1: Can your 95KW hydraulic test bench be customized to match our local power grid specifications? A: Absolutely. Because this is a major heavy-industrial asset, we custom-engineer the 95KW electrical controls, transformer circuits, and variable frequency drive (VFD) setups to natively support your specific regional power infrastructure—whether it’s 380V/50Hz 3-phase, 415V/50Hz, or 460V/60Hz.
Q2: Does the CAT system software support multi-language interfaces for overseas technicians? A: Yes, our proprietary Computer-Aided Testing (CAT) software comes standard with full English operator interfaces. For specialized regions, we can factory-configure the user interface into Russian, Spanish, or Portuguese to ensure your maintenance mechanics can easily calibrate, monitor, and print diagnostic reports without language barriers.
