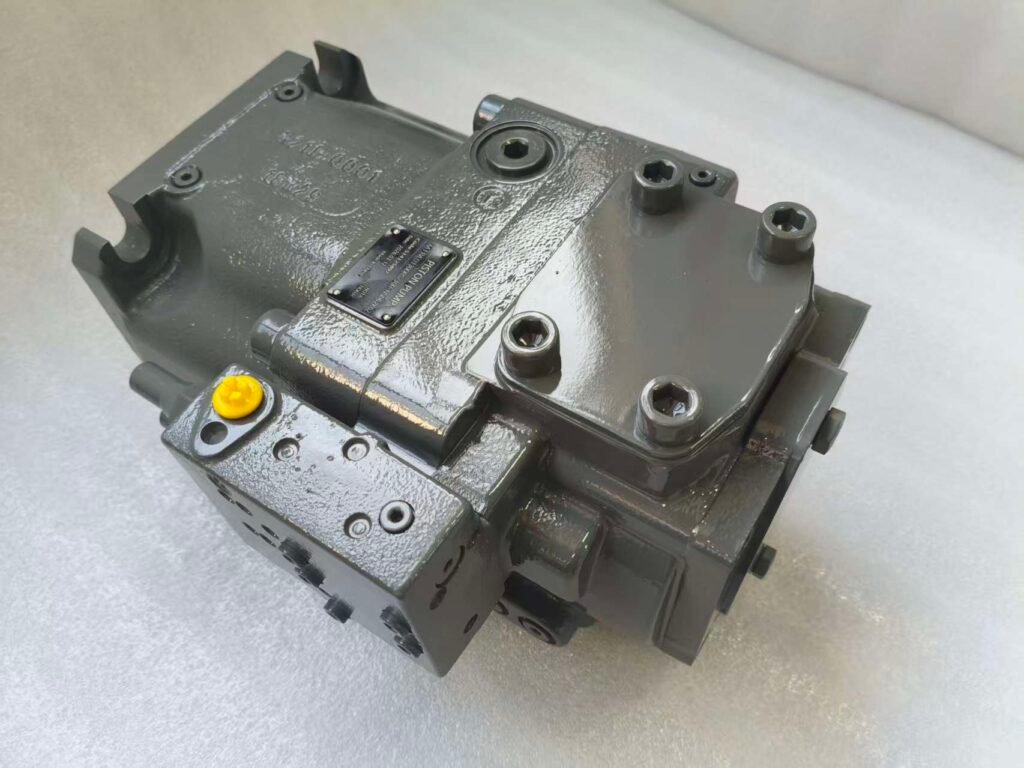

Axial and radial piston pumps power modern hydraulic systems. These components operate under continuous pressures from 210 bar to 350+ bar. Peak pressure spikes can even reach 420 bar. Over time, heat and friction cause wear on internal surfaces.
Rebuilding a worn piston pump cuts equipment costs by 50% to 70%. In addition, a proper rebuild restores original volumetric efficiency. However, technicians must follow strict sub-micron tolerances during the rebuild.
This technical guide covers wear indicators, step-by-step rebuild workflows, and application scenarios. Furthermore, it highlights factory component support from Guangdong Haozheng Hydraulic Equipment Co., Ltd.
1. Diagnostics: When Should You Rebuild a Piston Pump?
Early diagnostic checks prevent total pump failure. As a result, early repairs keep metal debris out of main control valves.
| Wear Symptom | Root Cause | Rebuild Action |
| High case drain heat | Radial piston-to-bore clearance expands | Replace cylinder block and pistons |
| Sluggish machine action | Swashplate cradle and control spools wear | Recondition swashplate and controls |
| Pressure fluctuation | Lapped valve plate shows scratches | Replace or lap bimetallic valve plate |
| Oil leaks at drive shaft | High-pressure shaft seal hardens | Renew seals and shaft bearings |
Critical Wear Thresholds:
- Expanded Radial Clearance: Internal fluid leakage spikes when piston clearances exceed 8 to 10 microns. Consequently, output flow drops under maximum load.
- Valve Plate Scoring: Scratches on the valve plate break the fluid seal with the cylinder barrel. Therefore, volumetric efficiency falls below 85%.
- Swashplate Cradle Wear: Grooved bearings cause binding during stroke adjustments. As a result, load-sensing compensators respond slowly.
2. Step-by-Step Piston Pump Rebuild Workflow
Restoring a high-pressure piston pump requires a structured rebuild protocol.
[Piston Pump Rebuild Workflow]
│
┌─────────────────────────────┴─────────────────────────────┐
▼ ▼
[Teardown & Cleaning] [Precision Inspection]
• Disassemble complete unit • Perform optical flat checks
• Wash parts in ultrasonic bath • Measure piston slippers
│ │
└─────────────────────────────┬─────────────────────────────┘
▼
[Rotary Group Replacement]
• Install precision-matched pistons
• Mount bimetallic valve plates
• Fit new bearings and shaft seals
│
▼
[Full Load-Bench Certification]
• Test pressure up to 420 bar
• Log case drain flow rates
• Calibrate compensator response
Key Technical Standards:
- Sub-Micron Flatness: Technicians lap mating surfaces between the cylinder barrel and valve plate to within 1 to 2 light bands. Consequently, this prevents fluid bypass at high pressure.
- Piston Shoe End-Play: Technicians maintain piston slipper socket play under 0.05 mm. Therefore, slipper shoes will not detach during suction strokes.
- Seal and Bearing Renewal: Workers replace drive shaft bearings and Viton/FKM seals during every overhaul. As a result, the pump easily handles high drive torque.
3. Targeted Machinery and Rebuild Scenarios
Rebuilt piston pumps support mission-critical machinery across global industries:
[Haozheng Piston Pump Rebuild & Component Solutions]
├── Mobile Construction ────> Excavators, Wheel Loaders, Cranes & Concrete Pumps
├── Industrial Manufacturing ─> Plastic Injection Molding Machines & Stamping Presses
├── Mining & Tunneling ──────> Underground Rock Drill Rigs & Tunnel Boring Machines (TBM)
└── Marine & Ports ─────────> Deck Winches, Anchor Capstans & Steering Actuators
Application Breakdown:
- Mobile Excavators: Rebuilding dual variable pumps (Rexroth A10VSO/A4VG, Kawasaki K3V, Komatsu HPV, CAT SBS) restores multi-function digging power.
- Injection Molding Presses: Reconditioning industrial variable pumps reduces internal heat. Therefore, oil temperatures remain stable during long clamping cycles.
- Underground Drill Rigs: Heavy-duty rebuilds use bimetallic rotary groups. Thus, pumps withstand abrasive dust and continuous shock loads.
4. The Haozheng Advantage: Factory Parts, Overhauls, and Test Benches
A successful rebuild depends on quality parts and rigorous testing.
Guangdong Haozheng Hydraulic Equipment Co., Ltd. provides factory-direct components to global repair shops. Specifically, we manufacture 100% drop-in complete pumps, precision rotating groups, and universal hydraulic test benches (75kW to 320kW series).
[Haozheng Production Infrastructure]
Sub-Micron CNC Grinding ──> Vacuum Heat Treatment ──> Bimetallic Wear Bonding ──> Full Load-Bench Testing
Why Rebuild Professionals Choose Guangdong Haozheng:
- 100% Direct Drop-In Parts: Our replacement parts match OEM dimensions exactly for major global brands. For example, we support Bosch Rexroth (A10VSO, A4VG, A11VO, A7VO), Parker (PV/PD), Eaton Vickers, Sauer-Danfoss, Komatsu, CAT, and Kawasaki.
- Sub-Micron Precision: We hold piston-to-bore clearances within 5 to 8 microns. Therefore, our parts stop high-pressure bypass and restore original efficiency.
- Bimetallic Wear Metallurgy: Cylinder barrel faces feature vacuum-heat-treated steel with copper/bronze bonding. As a result, parts resist cavitation and surface galling.
- Mandatory Load-Bench Testing: We test every pump up to 420 bar on computerized test stands before shipment.
- Test Bench Supply: In addition, Haozheng designs automated universal hydraulic test benches with digital data logging for repair shops worldwide.
Conclusion
A successful piston pump rebuild requires precision machining and verified load testing. Therefore, technicians must use quality components and proper procedures. Partnering with Guangdong Haozheng Hydraulic Equipment Co., Ltd. provides factory-direct parts, 100% drop-in compatibility, and professional testing solutions.
