In high-pressure fluid power engineering, the variable displacement axial piston pump is the definitive standard for achieving high energy efficiency, low thermal generation, and precise hydraulic control. By dynamically adjusting fluid output to match exact real-time system demands, these pumps allow heavy machinery to operate efficiently under continuous pressures ranging from 210 bar to 350+ bar (3,045 PSI to 5,076 PSI) with peak pressure capability up to 420 bar.
Selecting, operating, or replacing high-precision variable displacement axial piston pumps requires a deep understanding of swashplate kinematics, control regulator options, and severe-duty metallurgy.
This technical guide covers internal operating principles, control valve mechanics, heavy machinery application scenarios, and how direct-factory manufacturing from Guangdong Haozheng Hydraulic Equipment Co., Ltd. supports global fluid power operations.
1. Kinematics & Operating Principles

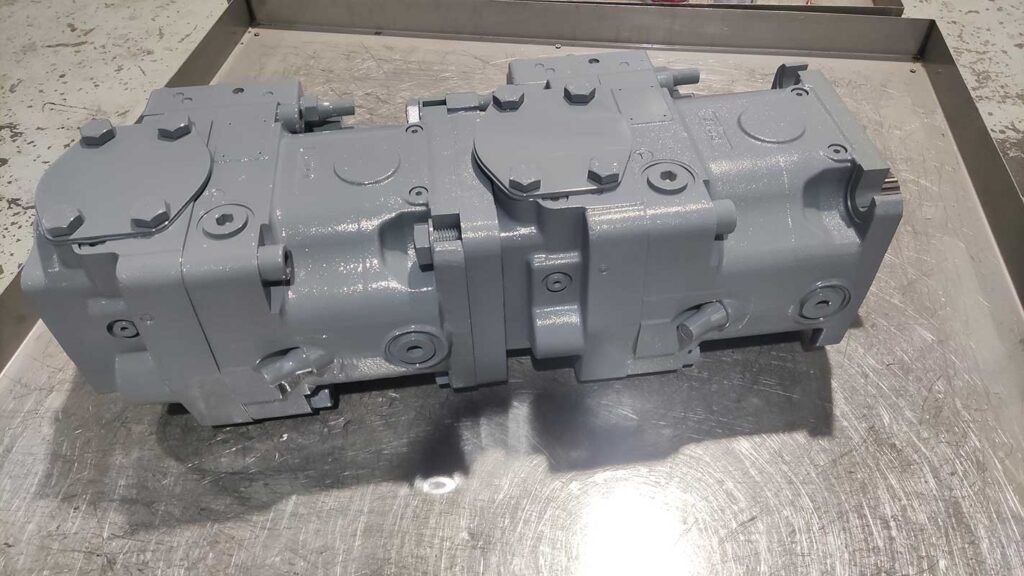

A variable displacement axial piston pump arranges its pistons parallel to the main drive shaft inside a rotating cylinder block (barrel). The piston shoes ride against an adjustable swashplate.
When the swashplate is perpendicular to the shaft, piston stroke length is zero, resulting in zero fluid flow. As the swashplate tilts, the stroke length increases, converting rotational mechanical energy into dynamic hydraulic displacement ($cc/rev$).
[System Actuator Pressure / Pilot Signal]
│
▼
[Servo Control Piston Shift]
│
▼
[Swashplate Angle Adjustment (\alpha)]
│
▼
[Piston Stroke Expansion / Contraction] ──> [Dynamic Volumetric Flow Rate (L/min)]
Core Design Advantages:
- Energy Conservation: Unlike fixed displacement pumps that bypass unused oil over relief valves at maximum pressure, variable units reduce flow when idle, cutting fuel and electrical power consumption by 20% to 30%.
- Reduced Heat Generation: Decreasing fluid bypass directly minimizes oil degradation, extending seal life and fluid change intervals.
- Rapid Dynamic Response: High-response servo systems adjust swashplate angles within 50 to 120 milliseconds, delivering instant hydraulic power during heavy load shifts.
2. Control Regulator Valve Architectures
The performance of a variable displacement axial piston pump relies heavily on its control regulator block configuration:
| Control Type | System Code Examples | Functional Mechanism & Benefits |
| Pressure Compensator Cutoff | DR / HD | Automatically reduces pump stroke to minimum flow when system reaches setpoint pressure, protecting circuits from over-pressurization. |
| Load-Sensing Control | DFR / DRS | Monitors load pressure drops across the main directional valve, matching pump flow and pressure precisely to real-time workload requirements. |
| Constant Torque / Power Limiter | LR / LA | Prevents engine or motor stalls by restricting hydraulic power absorption during simultaneous multi-function high-pressure demands. |
| Electro-Proportional Control | EP / ED | Receives proportional electric signals from joysticks or PLCs to adjust swashplate angles digitally with sub-millimeter precision. |
3. Targeted Machinery and Industrial Applications
Variable displacement axial piston pumps provide the core hydraulic driving power across diverse heavy equipment sectors:
[Haozheng Variable Displacement Axial Piston Pump]
├── Mobile Construction ────> Excavators, Mobile Cranes & Concrete Pump Trucks
├── Industrial Automation ───> Plastic Injection Molding Machines & Stamping Presses
├── Mining & Tunneling ──────> Underground Rock Drill Rigs & Tunnel Boring Machines (TBM)
└── Marine & Port Equipment ─> Deck Winches, Anchor Capstans & Steering Actuators
Heavy Machinery Breakdown:
- Hydraulic Excavators & Cranes: Primary pumps (such as Rexroth A10VSO/A4VG, Komatsu HPV, Caterpillar SBS, and Kawasaki K3V series) utilize load-sensing variable displacement to power boom, arm, bucket, and swing circuits independently or simultaneously.
- Injection Molding & Metal Presses: Industrial variable displacement pumps dynamically alter displacement during mold clamping, plastic injection, and holding cycles, reducing energy costs during dwell phases.
- Underground Drill Rigs & TBMs: Severe-duty axial piston pumps withstand continuous shock loads, abrasive dust, and continuous 350+ bar pressure cycles during rock excavation.
4. The Haozheng Solution: Direct Manufacturing & Test Bench OEM
Sourcing variable displacement axial piston pumps and replacement parts often presents challenges with long lead times, steep markup pricing, or unverified aftermarket quality.
Guangdong Haozheng Hydraulic Equipment Co., Ltd. bridges precision engineering with direct factory distribution. We specialize in manufacturing complete variable displacement axial piston pumps, hydraulic motors, precision replacement rotating groups (cylinder blocks, pistons, valve plates, swashplates, ball guides), and universal hydraulic test benches (75kW to 320kW series).
[Haozheng Integrated Production Infrastructure]
Sub-Micron CNC Grinding ──> Vacuum Heat Treatment ──> Bimetallic Wear Bonding ──> 100% Load-Bench Certification
Why Global Fluid Power Partners Choose Guangdong Haozheng:
- 100% Direct Drop-In Interchangeability: Complete pumps and internal rotating components match OEM mounting dimensions, shaft splines, and port patterns exactly for major global series, including Bosch Rexroth (A10VSO, A4VG, A11VO, A7VO), Parker Hannifin (PV/PD), Eaton Vickers, Sauer-Danfoss, Komatsu, Caterpillar, and Kawasaki.
- Sub-Micron Precision Tolerances: Radial clearances between pistons and cylinder bores are maintained within 5 to 8 microns, stopping internal fluid leakage and guaranteeing volumetric efficiency above 95%.
- Bimetallic Wear Metallurgy: Cylinder blocks and piston slippers utilize vacuum-heat-treated alloy steel bonded with high-grade bronze/copper layers to withstand high fluid shear and micro-cavitation under continuous 350+ bar loads.
- 100% Factory Load-Bench Validation: Every pump undergoes full-load testing up to 350 to 420 bar on our computerized test stands to verify pressure-flow curves and compensator cutoff speeds prior to export.
- Custom Hydraulic Test Stand Manufacturing: In addition to pump production, Haozheng designs and builds automated universal hydraulic test benches equipped with digital data acquisition, enabling repair centers globally to calibrate pumps with full digital documentation.
Conclusion
A variable displacement axial piston pump is a sophisticated fluid power component where sub-micron machining tolerances, heavy-duty metallurgy, and verified full-load testing determine overall machine productivity. Partnering directly with Guangdong Haozheng Hydraulic Equipment Co., Ltd. delivers factory-direct engineering excellence, 100% drop-in component compatibility, and fast global delivery turnarounds.
