In fluid power engineering, the axial piston pump is widely celebrated for its ability to match system demands dynamically. Unlike fixed-displacement gear or vane pumps that discharge a constant volume of oil per revolution, a variable displacement axial piston pump can alter its output flow on the fly while running at a constant drive shaft speed.
But exactly how can displacement be varied in an axial piston pump?
The short answer lies in manipulating the internal geometry of the pump—specifically, altering the linear travel distance of the reciprocating pistons. Below, we dive deep into the mechanical principles, the swashplate control methods, and the advanced control architectures that make this variable flow possible.
1. The Core Physics: Stroke Length Determines Displacement
To understand how flow varies, we must look at the mathematical formula for a pump’s theoretical flow rate ($Q$):
$$Q = V_g \times n$$
Where $V_g$ is the displacement per revolution and $n$ is the rotational speed. Inside an axial piston pump, the displacement ($V_g$) is a direct product of the number of pistons, their cross-sectional area, and—most importantly—their stroke length (the distance a piston travels inward and outward within the cylinder barrel).
Since the piston area and number of pistons are physically fixed during manufacturing, varying the stroke length is the only way to vary displacement at a constant speed ($n$).
2. The Swashplate Mechanism: The Pivot of Variable Flow
In the standard swashplate-design axial piston pump (such as the industry-standard Rexroth A10VSO or A4VSO series), the pistons are arranged parallel to the drive shaft. The slippers of these pistons ride against an angled, non-rotating plate called the swashplate (or cradle).
As the cylinder barrel rotates, the pistons are forced to follow the incline of this plate. The angle of that incline dictates the entire operation:
[Swashplate Angle Variations]
├── Maximum Incline ──> Longest Stroke ──> Maximum Flow (Full Displacement)
├── Reduced Incline ──> Shorter Stroke ──> Reduced Flow (Partial Displacement)
└── Zero Incline (Flat) ──> No Stroke ──> Zero Flow (Zero Displacement / Standby)
The Three Operational States:
- Maximum Displacement: When the control system tilts the swashplate to its steepest allowable angle (typically between $15^\circ$ and $18^\circ$), the pistons experience maximum linear travel. This results in the maximum volume of oil being sucked in and pushed out per rotation.
- Partial Displacement: If the swashplate angle is reduced to a shallower tilt, the pistons slide in and out over a much shorter distance. The volume of the chamber changes less, causing a proportional drop in output flow.
- Zero Displacement (Destroked): When the swashplate is positioned completely perpendicular ($0^\circ$ angle) to the drive shaft, the rotating pistons simply glide across a flat surface. They do not move inward or outward at all. Flow drops to zero, allowing the prime mover to idle with minimal energy consumption while maintaining system pressure.
3. Control Architectures: How the Angle is Adjusted
The swashplate does not move on its own; it is positioned by an internal hydraulic control cylinder (often counterbalanced by a heavy return spring). This cylinder is governed by a pump controller or regulator based on real-world system feedback.
Here are the three most common control methods used to vary the swashplate angle:
1.Pressure Compensation (DR Control)：System Load Matching。
When the system hits a preset pressure limit (e.g., a cylinder reaches the end of its stroke), the pilot oil overcomes the internal controller spring. This channels high-pressure oil directly into the internal control piston, forcing the swashplate back toward $0^\circ$. The pump stops moving fluid but maintains holding pressure.
2.Load-Sensing Control (DFR/FR)：Flow on Demand。
This system constantly monitors the pressure drop across a user’s control valve. If the operator opens the valve slightly, the controller senses the pressure differential and tilts the swashplate just enough to provide the exact flow requested, drastically reducing energy waste and thermal generation.
3.Electronic Proportional Control (EP/ED)：Digital Integration。
Modern industrial automation uses proportional solenoids. An electrical current (e.g., 4-20mA signal from a PLC) acts on a proportional valve, precisely regulating the control fluid entering the swashplate cylinder to adjust displacement digitally.
4. Alternate Method: Bent-Axis Axial Piston Pumps
While swashplate designs are the most common variable flow options, it is important to note that bent-axis axial piston pumps (such as the Rexroth A7VO or A8VO series) vary displacement differently.
Instead of a tilting plate, the entire cylinder barrel housing is mounted on a pivoting yoke. To vary displacement, the control cylinders pivot the entire cylinder block angle relative to the drive shaft axis. When the block is aligned straight with the shaft, displacement is zero; when bent at an angle (up to $40^\circ$), displacement reaches maximum. Bent-axis pumps are highly valued for heavy-duty applications due to their exceptional mechanical efficiencies.
5. Engineering Reliability: The Guangdong Haozheng Standards
Because varying displacement subjects the swashplate cradle bearings and piston slippers to constant angular adjustments and aggressive cyclic shock loads, inferior manufacturing leads to rapid control lag, pressure fluctuations, and catastrophic internal seizure.

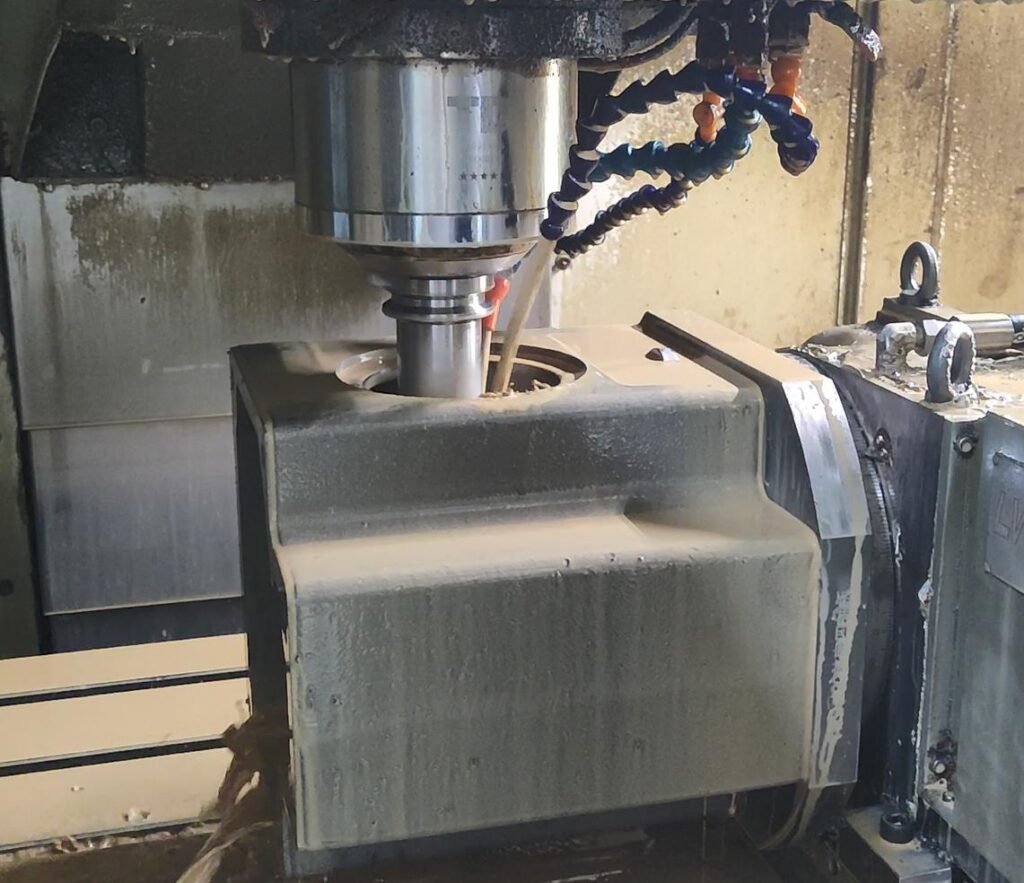

At Guangdong Haozheng Hydraulic Equipment Co., Ltd., we specialize in manufacturing high-precision variable displacement axial piston pumps and replacement parts that provide a seamless, direct drop-in alternative to global OEM brands.
Why Engineering Teams Choose Haozheng Components:
- Ultra-Precise Cradle Bearings: Our swashplate cradle tracks undergo rigorous micro-finishing to ensure fluid, zero-stutter angular response during high-speed displacement adjustments.
- Matched Tolerances: We maintain tolerances down to the micron level between our control pistons and regulator sleeves, ensuring lightning-fast stroke response times when your system demands immediate pressure compensation.
- Full-Spectrum Bench Calibration: Every variable pump assembly—spanning our A10VSO, A4VSO, A11VO, and A4VG direct-interchange series—is rigorously dynamically tested to guarantee its flow-versus-angle control curves align perfectly with original technical specifications.
Conclusion
Varying displacement in an axial piston pump is an elegant ballet of mechanical geometries and fluid feedback loops. By tilting a swashplate or pivoting a cylinder barrel, the pump alters piston stroke lengths to deliver precise flow control, maximum energy efficiency, and unyielding high-pressure performance.
For industrial operators seeking to retain this advanced control capability while cutting excessive OEM procurement costs, Guangdong Haozheng Hydraulic Equipment provides the exact technical compatibility, metallurgical resilience, and field-proven reliability your operations demand.
