In heavy industrial machinery, construction equipment, and deep-earth extraction, systems require fluid power that can withstand immense pressure without shearing or leaking. While gear and vane pumps are excellent for low-to-medium pressure applications, the absolute king of high-pressure execution is the piston pump.
But how does a piston pump work, and what makes it capable of generating forces exceeding $350\text{ bar}$ ($5000\text{ PSI}$)? This guide breaks down the fundamental physics, internal mechanics, and variable control mechanisms behind this fluid power workhorse.
1. The Core Physics: Reciprocating Displacement
At its absolute baseline, a piston pump is a positive displacement pump. It moves fluid by trapping a fixed amount of liquid and forcing that trapped volume into the discharge pipe.
The mechanism relies on a simple two-stroke cycle within a sealed cylinder:
[The Two-Stroke Piston Cycle]
1. Suction Stroke: Piston moves out ──> Volume increases ──> Pressure drops ──> Fluid enters
2. Delivery Stroke: Piston moves in ──> Volume decreases ──> Pressure rises ──> Fluid exits
- The Suction Stroke (Inlet): As the piston retracts out of the cylinder chamber, the internal volume increases. According to Bernoulli’s principles and basic pressure laws, this volume increase creates a localized partial vacuum (low pressure). Atmospheric or reservoir pressure forces the fluid past the inlet check valve and into the chamber.
- The Delivery Stroke (Outlet): As the mechanism reverses and pushes the piston back into the cylinder, the volume rapidly decreases. Because hydraulic fluid is virtually incompressible, this movement forces the pressure to spike instantly. The inlet valve snaps shut, the outlet check valve forces open, and the high-pressure fluid is discharged into the system.
2. Axial Piston Pumps: The Swashplate Mechanism
While single-piston designs exist (like hand pumps or pressure washers), industrial systems predominantly utilize axial piston pumps (such as the widely used Rexroth A10VSO or A4VSO series). Instead of one piston, these feature multiple pistons (usually 7 to 9) arranged in a circular barrel around a central drive shaft.
The magic that translates rotation into reciprocating linear motion is the Swashplate.
1.Shaft Rotation：Mechanical Input。
The prime mover (electric motor or diesel engine) spins the pump’s drive shaft, which directly rotates the cylinder barrel containing the pistons.
2.Swashplate Riding：Linear Reciprocation。
The base of each piston is fitted with a slipper pad that rides against a stationary, angled metal disc called the swashplate. Because the plate is angled, as the barrel rotates, the pistons are forced to slide in and out of their cylinders.
3.Fluid Porting：Continuous Flow。
As the pistons extend during one half-rotation, they pass over the inlet port slot, drawing oil in. As they compress during the second half-rotation, they pass over the outlet port slot, forcing high-pressure oil out into the hydraulic lines.
3. Variable Displacement: Controlling the Flow
One of the greatest advantages of an axial piston pump is the ability to change how much fluid it pumps per revolution without changing the speed of the engine. This is known as variable displacement.
By utilizing a control device (like a hydraulic compensator cylinder), the pump can adjust the angle of the swashplate:
- Maximum Angle: When the swashplate is tilted sharply, the pistons travel a long distance in and out of the chambers. This creates maximum stroke length, resulting in maximum fluid flow.
- Zero Angle (Flat): If the swashplate is pushed perfectly perpendicular (flat) to the drive shaft, the pistons do not move in or out at all as the barrel spins. The stroke length becomes zero, resulting in zero fluid flow, even though the engine is still running.
This capability prevents energy waste and system overheating, allowing the pump to “destroke” when the system reaches its target operating pressure.
4. Technical Comparison: Axial Piston vs. Radial Piston Designs
Depending on the machine layout, you will encounter either axial or radial configurations:
| Engineering Parameter | Axial Piston Pump (e.g., A10VSO) | Radial Piston Pump |
| Piston Orientation | Parallel to the drive shaft axis. | Perpendicular (radiating out like a star). |
| Max Pressure Range | High ($350 – 400\text{ bar}$) | Ultra-High ($400 – 700+\text{ bar}$) |
| Displacement Control | Highly adaptable via variable swashplates. | Typically fixed displacement (variable is highly complex). |
| Common Uses | Industrial machinery, mobile excavators, closed loops. | Ultra-heavy presses, heavy lifting jacks, marine steering. |
5. Premium Manufacturing: The Haozheng Engineering Standards

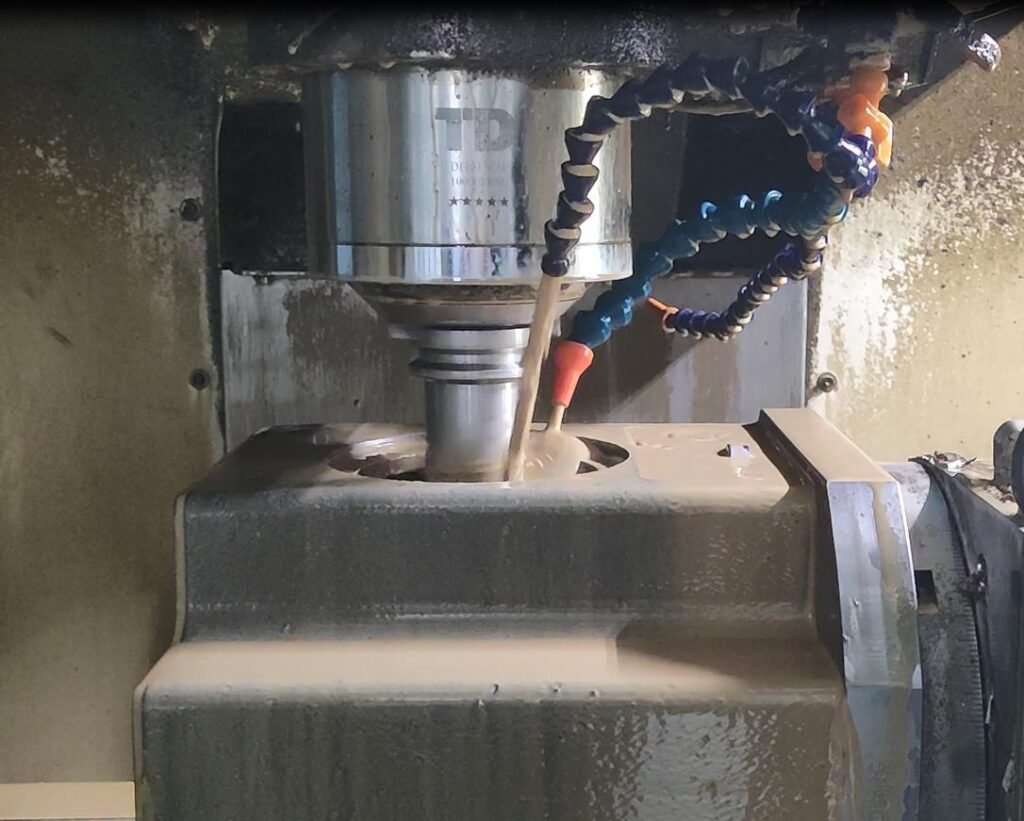

Because piston pumps operate under fierce stress, the tolerances inside the cylinder barrel are measured in microns. Any sub-standard machining results in massive internal volumetric leakage ($\text{slippage}$) and severe efficiency drops.
At Guangdong Haozheng Hydraulic Equipment Co., Ltd., we manufacture precision aftermarket axial piston pumps and replacement parts that offer a 100% direct drop-in alternative to world-leading OEM brands like Bosch Rexroth.
What Sets Haozheng Piston Pumps Apart:
- Advanced Metallurgy: Our pistons undergo specialized nitrocarburizing heat treatment, creating an ultra-hard surface skin that resists wear caused by fluid particulates and micro-abrasions.
- Optimized Slipper Seating: We utilize premium bimetallic bronze-steel bonding on our valve plates and piston slippers to minimize friction coefficient under maximum load, maintaining a volumetric efficiency greater than 95%.
- Full-Spectrum Bench Testing: Every variable piston pump we build (including our A10VSO, A4VSO, A11VO, and A4VG direct-replacement series) undergoes mandatory dynamic testing to verify exact pressure-flow response curves before shipment.
Conclusion
A piston pump works by elegantly converting rotary force into high-pressure fluid flow using a combination of positive displacement and variable swashplate geometries. Understanding this mechanism allows engineers to properly maintain, diagnose, and optimize their fluid power systems.
For operators looking to maintain peak performance without OEM pricing overhead, sourcing robustly tested, precision-matched alternatives from Guangdong Haozheng Hydraulic Equipment ensures your machinery never drops pressure when it matters most.
