How Does an Axial Piston Pump Work? Complete Working Principle & Structure

Introduction

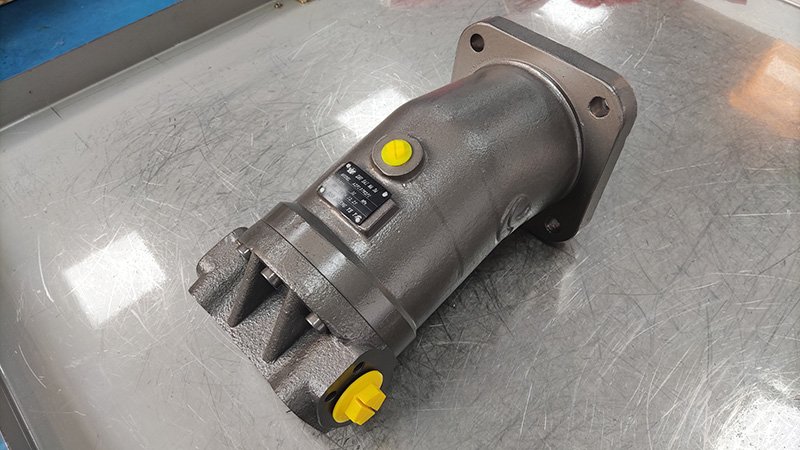

An axial piston pump is the core power component of modern high-efficiency hydraulic systems. It delivers stable high-pressure fluid output for construction machinery, mining equipment, industrial hydraulic stations, and agricultural machinery. Compared with gear pumps and vane pumps, it features higher pressure resistance, lower noise, and adjustable displacement. It adapts perfectly to complex and heavy-duty working conditions worldwide. Most equipment operators and maintenance technicians often search forhow does an axial piston pump work to master its operating logic and improve equipment maintenance efficiency.

This article elaborates on the internal structure, complete working cycle, core operating logic, and classification characteristics of axial piston pumps. It also analyzes their practical application value in engineering scenarios, providing professional technical references for global industrial users.

Basic Structure of an Axial Piston Pump

The stable operation of an axial piston pump depends on precise coordination of multiple core components. Each part undertakes independent functions to complete fluid suction, pressurization, and discharge. The key structural components are as follows:

• Drive Shaft & Cylinder Block: The drive shaft inputs power and drives the cylinder block to rotate synchronously. Multiple piston bores are evenly distributed on the cylinder block, forming the main working chamber of the pump.
• Pistons & Slippers: Multiple pistons are arranged parallel to the drive shaft inside the cylinder block. The piston slippers fit closely with the swash plate to ensure flexible reciprocating movement and reduce friction wear.
• Swash Plate: It is the key component that determines pump displacement. The inclined angle of the swash plate controls the piston stroke. It directly adjusts the oil delivery volume of the pump.
• Valve Plate: Installed between the cylinder block and the pump housing. It separates the low-pressure oil suction channel and high-pressure oil discharge channel. It prevents fluid backflow and ensures accurate cyclic operation.
• Return Mechanism & Sealing Assembly: The return structure ensures pistons reset stably. High-precision sealing parts avoid oil leakage and maintain internal pressure stability of the hydraulic system.

How Does an Axial Piston Pump Work? Step-by-Step Working Principle

The working principle of an axial piston pump follows the positive displacement hydraulic transmission theory. It converts rotational mechanical energy into hydraulic pressure energy through periodic reciprocating motion of pistons. The entire working process is divided into two continuous and synchronized stages.

1. Low-Pressure Oil Suction Stroke

When the drive shaft drives the cylinder block to rotate, the piston moves outward along the axial direction under the action of the swash plate and return mechanism. This movement increases the volume of the closed chamber inside the cylinder bore. It forms stable negative pressure inside the chamber. Under atmospheric pressure, hydraulic oil passes through the filter and valve plate suction port. It is smoothly sucked into the piston chamber to complete the oil suction process.

2. High-Pressure Oil Discharge Stroke

As the cylinder block continues rotating, the swash plate pushes the piston inward toward the valve plate. The volume of the closed piston chamber shrinks rapidly. The internal hydraulic oil is compressed instantly to form high pressure. When the pressure reaches the system threshold, the high-pressure fluid flows out through the valve plate discharge port. It is delivered to hydraulic cylinders, hydraulic motors and other executive components to provide power support for equipment operation.

3. Continuous Cyclic Operation

Multiple pistons work in staggered cycles during continuous rotation. Each piston independently completes suction and discharge actions. This design eliminates flow interruption and pressure fluctuation. It ensures the axial piston pump outputs stable and continuous high-pressure hydraulic power all the time.

Fixed vs Variable Displacement Axial Piston Pumps

Based on displacement adjustment methods, axial piston pumps are divided into fixed displacement and variable displacement types. Their working principles are slightly different for different application scenarios.

Fixed displacement axial piston pumps adopt a fixed swash plate angle. Their piston stroke and oil delivery volume remain constant. They are suitable for equipment with stable load and fixed flow demand, featuring simple structure and low failure rate.

Variable displacement axial piston pumps support real-time adjustment of the swash plate tilt angle. Users can change the piston stroke according to equipment load changes. It dynamically adjusts fluid flow and system pressure. It effectively reduces idle power loss and fuel consumption, making it the mainstream choice for modern intelligent construction machinery.

Core Advantages of Axial Piston Pumps

Axial piston pumps occupy a dominant position in high-end hydraulic systems due to their unique structural design and working performance. Their core advantages are obvious compared with other hydraulic pumps:

• High pressure resistance: Stable operation under 280–350 bar working pressure, meeting the power demand of heavy engineering equipment.
• High energy efficiency: Variable displacement models dynamically match load flow. They reduce system heat generation and effectively lower equipment operating costs.
• Low vibration and low noise: Staggered multi-piston operation reduces flow pulsation. It ensures smooth and stable hydraulic system operation.
• Strong durability: Precision processing and wear-resistant materials extend service life. They adapt to harsh working environments such as high load and high temperature.

Wide Application Scenarios

Relying on superior hydraulic performance, axial piston pumps are widely used in global industrial and engineering fields, including construction machinery, mining equipment, industrial hydraulic stations, agricultural machinery, and special engineering equipment. They are the indispensable core power components of modern hydraulic transmission systems.

High-Quality Axial Piston Pump Solutions from Haozheng

Haozheng is a professional global manufacturer and supplier of high-performance axial piston pumps and hydraulic spare parts. We focus on R&D, production and batch supply of engineering hydraulic components. Our product lineup covers mainstream and classic series such as A10VSO and A11VO variable axial piston pumps.

All our axial piston pumps adopt precision machining technology and strict full-process quality testing. They feature stable working performance, accurate displacement adjustment, strong pressure resistance, and long service life. Our products fully adapt to frequent startup, high load and harsh outdoor working conditions. They can perfectly replace imported original pumps and effectively reduce equipment maintenance and replacement costs for users.

We support customized parameter production and global batch delivery. Our professional technical team provides one-stop services including model selection guidance, technical consultation and after-sales support. Our products are exported to Europe, Russia, Southeast Asia and other regions. If you need to purchase high-quality axial piston pumps or obtain professional hydraulic system matching solutions, please contact our team for detailed product parameters and official quotations.
