In industrial automation, mobile construction, and heavy manufacturing, fluid power networks rely on a single primary component to drive mechanical movement: the oil pump for a hydraulic system. Functioning as the mechanical heart of the machine, this pump takes mechanical energy from an electric motor or internal combustion engine and converts it into hydrostatic dynamic fluid power.
Whether powering high-tonnage metal stamping presses, smooth-operating injection molding units, or heavy-duty excavators, selecting the right hydraulic oil pump determines system efficiency, operating noise, pressure stability, and total lifecycle costs.
This technical guide explores the core engineering principles of high-pressure hydraulic oil pumps, key selection criteria, application scenarios, and why sourcing engineered pumps from Guangdong Haozheng Hydraulic Equipment Co., Ltd. provides a distinct competitive advantage for global B2B procurement.
1. Core Engineering: How an Oil Pump Powers a Hydraulic System
A specialized oil pump for a hydraulic system is a positive displacement unit engineered to move high-viscosity mineral oils or synthetic fluids against heavy system resistance. Unlike standard water pumps, hydraulic oil pumps must maintain sub-micron internal seals to withstand continuous operating pressures exceeding $210 – 350\text{ bar}$ ($3,045 – 5,076\text{ PSI}$).
[Prime Mover / Engine] ──> [Pump Shaft Rotation] ──> [Expanding Intake Chamber] ──> [High-Pressure Displacement] ──> [Actuator Drive]
Primary Classifications of Hydraulic Oil Pumps:
- Axial Piston Oil Pumps (Variable & Fixed Displacement): The gold standard for high-pressure, heavy-duty applications (e.g., A10VSO, A4VSO, A4VG series). They utilize an internal swashplate to alter stroke length dynamically, adjusting fluid flow based on real-time load demand to save energy.
- Vane Oil Pumps (Low-Noise Operations): Feature sliding vanes inside an eccentric ring (e.g., T6, T7 series). Ideal for indoor industrial environments requiring whisper-quiet operation and minimal flow ripple.
- High-Pressure Gear Pumps (Severe-Duty Simplicity): Rugged external or internal gear configurations designed for harsh outdoor mobile equipment where oil contamination resistance and simple mechanics are prioritized.
2. Key Technical Parameters for Procurement Selection
When evaluating an oil pump for a hydraulic system, B2B procurement managers and system design engineers must evaluate several critical mechanical thresholds:
| Technical Parameter | Engineering Relevance | Typical Industry Standards |
| Nominal Displacement ($cc/rev$) | Volume of oil displaced per shaft rotation. | Ranges from compact $19 – 45\text{ cc}$ up to $140 – 250\text{ cc}+$. |
| Working Pressure ($bar / PSI$) | Maximum continuous system resistance. | Medium-pressure ($210\text{ bar}$) to High-pressure ($350 – 420\text{ bar}$). |
| Volumetric Efficiency ($\eta_v$) | Ratio of actual delivered flow vs. theoretical flow. | Target $\ge 95\%$ under full load and thermal operating limits. |
| Fluid Cleanliness Standard | Maximum particle contamination tolerance. | Typically rated according to ISO 20/18/14 cleanliness codes. |
| Acoustic Rating ($dB$) | Noise level generated during high-speed operation. | Critical for indoor factories ($\le 65 – 75\text{ dB}$). |
3. Targeted Machinery & Field Application Scenarios
A high-grade oil pump for a hydraulic system serves as the primary driver across diverse mobile and stationary industrial equipment:
[Haozheng High-Performance Hydraulic Oil Pump]
├── Stationary Industrial ──> Plastic Injection Molding & Hydraulic Presses
├── Mobile Construction ────> Excavators, Wheel Loaders & Crawler Dozers
├── Agricultural Machinery ─> Combine Harvesters & High-Horsepower Tractors
└── Marine & Offshore ──────> Deck Winches, Anchor Capstans & Steering Gears
Key Machinery Breakdown:
- Industrial Metal Presses & Shears: Demands high-pressure piston pumps (like the PD or A10VSO series) that supply rapid pressure spikes to shape heavy sheet metals cleanly.
- Plastic Injection Molding Equipment: Utilizes low-noise variable displacement oil pumps to drive clamping units and resin injection screws smoothly without generating excess heat in indoor factory floors.
- Heavy Construction Excavators & Cranes: Relies on robust axial piston pumps and auxiliary gear/fan pumps (e.g., 708 series) to power boom lifting, swing drives, and variable fan cooling loops under dust-heavy environments.
- Modern Agricultural Harvesters: Uses medium-pressure swashplate piston pumps (e.g., HZ70 series) for power steering, header elevation, and hydrostatic seed fan drives.
4. Guangdong Haozheng: World-Class Hydraulic Manufacturing & B2B Supply
Sourcing an oil pump for a hydraulic system from traditional OEM giants often presents global equipment builders, repair facilities, and distributors with rigid pricing and protracted supply backlogs.
At Guangdong Haozheng Hydraulic Equipment Co., Ltd., we eliminate these supply bottlenecks. We specialize in manufacturing high-precision complete hydraulic oil pumps, motors, and direct drop-in replacement components for world-leading brands (including Bosch Rexroth, Parker Hannifin, Eaton Vickers, Komatsu, and Caterpillar).
[Haozheng Quality Infrastructure]
Sub-Micron CNC Honing ──> Nitrocarburizing Heat Treatment ──> Bimetallic Bronze Bonding ──> 100% Dynamic Bench Validation
The Haozheng Manufacturing Standard:
- Sub-Micron Precision Tolerances: We control internal piston-to-bore radial clearances to within $5 – 8\text{ microns}$. This tight fit eliminates internal bypass leakage, keeping volumetric efficiency above 95%.

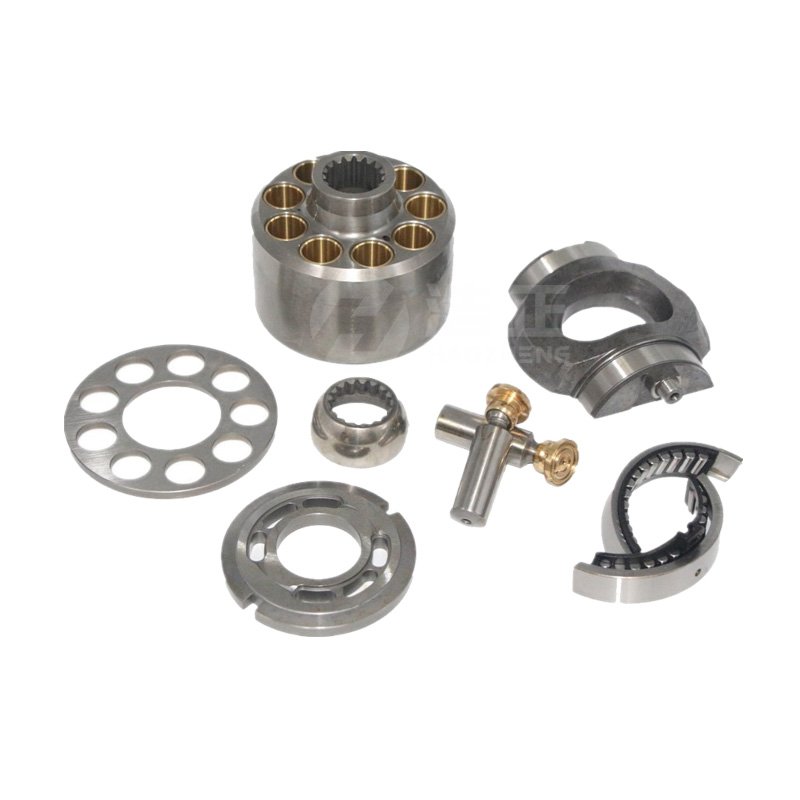

- Severe-Duty Metallurgy & Bimetallic Fusion: Our valve plates, cylinder blocks, and piston slipper pads utilize advanced bimetallic copper-steel bonding and gas nitriding to resist fluid shear and wear under extreme pressures ($350+\text{ bar}$).
- 100% Full-Load Bench Testing: Every single oil pump manufactured by Haozheng undergoes mandatory dynamic pressure, flow, and temperature verification on digital test stands before global shipment.
Conclusion
An oil pump for a hydraulic system is an engineered component where sub-micron clearances, advanced metallurgy, and dynamic pressure regulation dictate system uptime. Selecting a pump built to withstand high fluid shear and thermal stress is essential to preventing premature machine failure.
For global B2B procurement managers, heavy equipment rebuilders, and fluid power distributors seeking OEM-level reliability combined with direct factory-direct economic advantages, Guangdong Haozheng Hydraulic Equipment Co., Ltd. provides the ultimate competitive advantage.
