Short Description

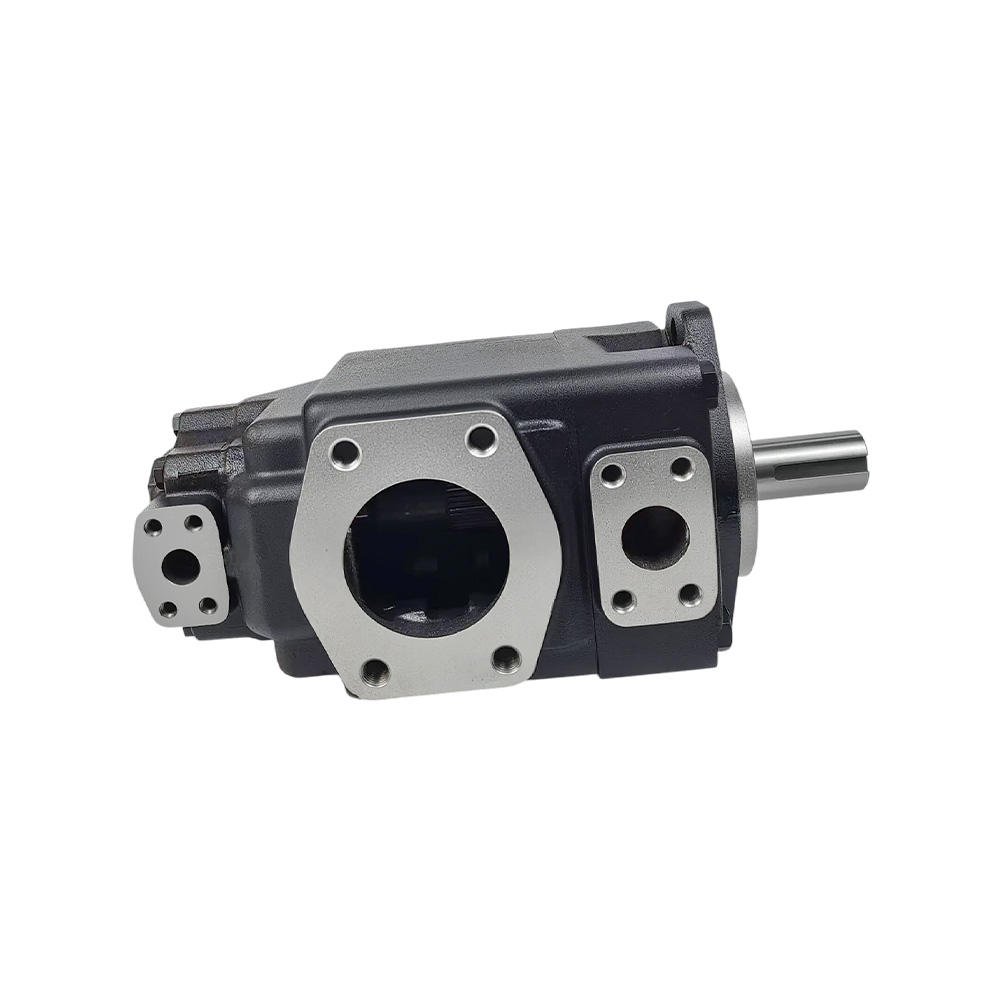

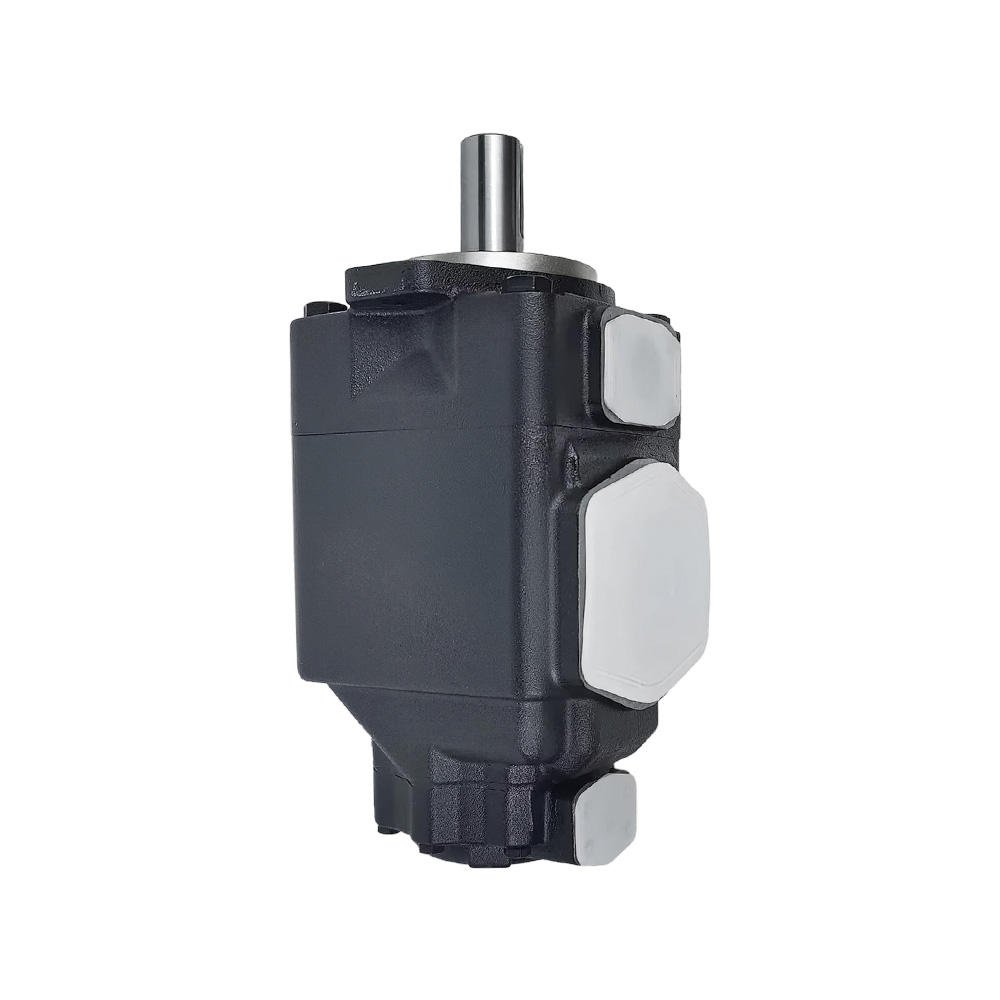

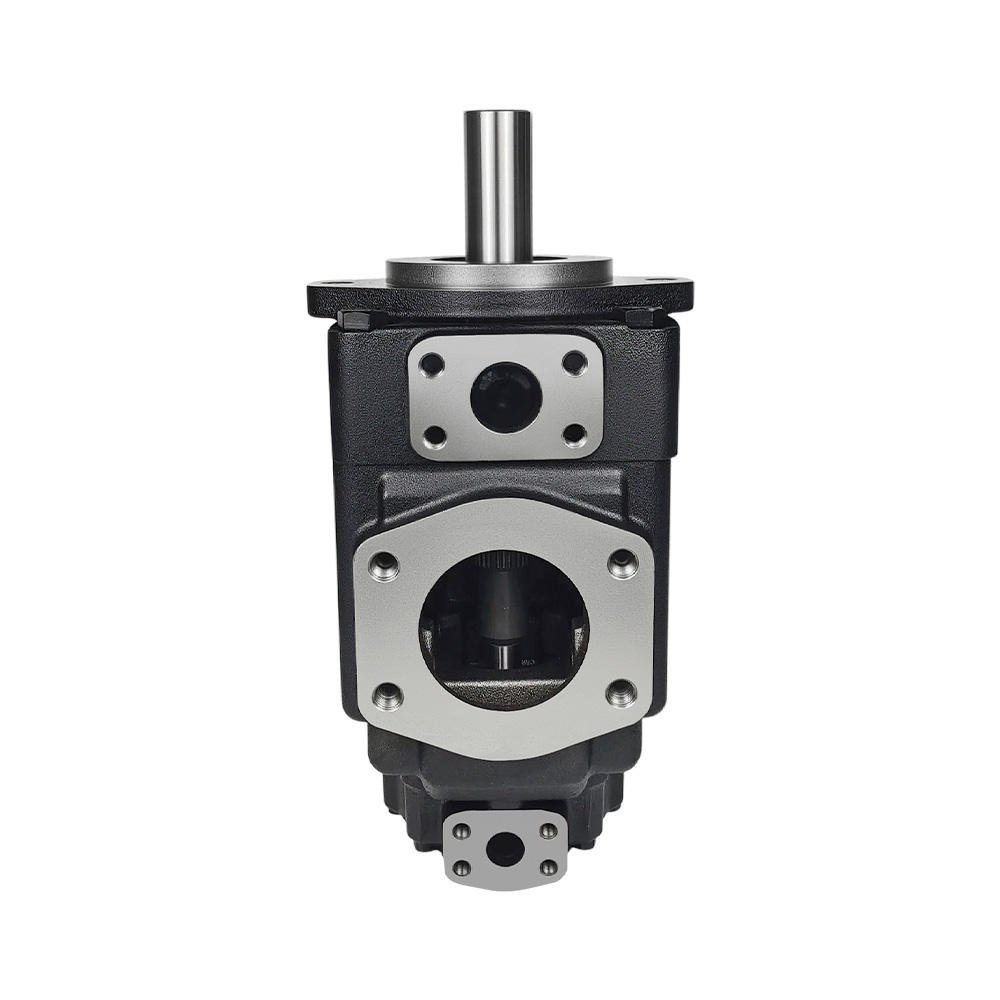

Premium aftermarket T6EC-057-014-1L15-B1-J224 Double Hydraulic Vane Pump Assembly, engineered as a 100% precision drop-in replacement for original Parker Denison fluid power systems. Combining a high-capacity 057 heavy-duty cartridge with a precise 014 mid-range cartridge on a counter-clockwise (Left Hand) drive shaft, this unit delivers exceptional volumetric efficiency, low acoustic vibration, and reliable up to 240 bar pressure holding in demanding mobile drilling and stationary industrial applications.
Key Highlights
-
Exact Drop-In Nomenclature Matching: Fully interchangeable with original Denison/Parker code T6EC-057-014-1L15-B1-J224. Guarantees exact alignment for the standard keyed shaft, counter-clockwise dynamics, and specific 15-port configuration without modifying heavy field piping.
-
Optimized Hi-Low Displacement Ratio: Combines a robust 181.0 ml/r main circuit feed with a 46.0 ml/r auxiliary control feed, providing a highly optimized fluid management setup for machinery requiring intense rapid travel followed by high-pressure clamping/drilling cycles.
-
Left-Hand (CCW) Dynamic Calibration: Specifically built and factory-timed for counter-clockwise rotation systems. Internal cam rings, floating side plates, and 12-vane cartridge geometry are hydro-dynamically balanced for zero cavitation at high speeds.
-
Whisper-Quiet Heavy Operation: Denison’s signature bimetallic plate structure limits inner case slippage and drastically lowers decibel output, meeting strict global factory regulations for indoor heavy equipment operations.
Technical Parameters Matrix
| Technical Attribute | Specification Data |
|---|---|
| Full Model Number | T6EC-057-014-1L15-B1-J224 |
| Brand Compatibility | Denison / Parker Hannifin Hydraulic System |
| Pump Category | Double / Dual Fixed Displacement Vane Pump |
| P1 (Shaft End) Displacement | Size 057 (Approx. 181.0 ml/rev) |
| P2 (Cover End) Displacement | Size 014 (Approx. 46.0 ml/rev) |
| Shaft Style Code | Code 1 (Standard Straight Keyed Shaft) |
| Direction of Rotation | L (Left Hand / Counter-Clockwise from shaft end view) |
| Port Orientation Layout | Code 15 (Custom Specified Flange Angles) |
| Max Operating Pressure | 240 bar / 3500 PSI |
FAQ
Q1: My machine requires a Right-Hand (Clockwise) rotation pump, can I modify this 1L15 version? A: This specific pump is factory-built and micro-timed for Left-Hand (1L) counter-clockwise dynamic operation. If your machine specifies a Clockwise rotation, please source the 1R00 or matched right-hand design variant instead. Our engineering team can modify the internal cartridge timing orientation before shipping to perfectly match your directional requirement—just provide your existing nameplate picture!
Q2: Does this T6EC double pump include the standard replacement warranty? A: Yes. Every T6EC-057-014-1L15-B1-J224 pump assembly comes backed by our comprehensive 12-month factory warranty. We also maintain continuous stock of individual 057 and 014 bimetal cartridge replacement kits for speedier overhaul operations down the road.
