Short Description

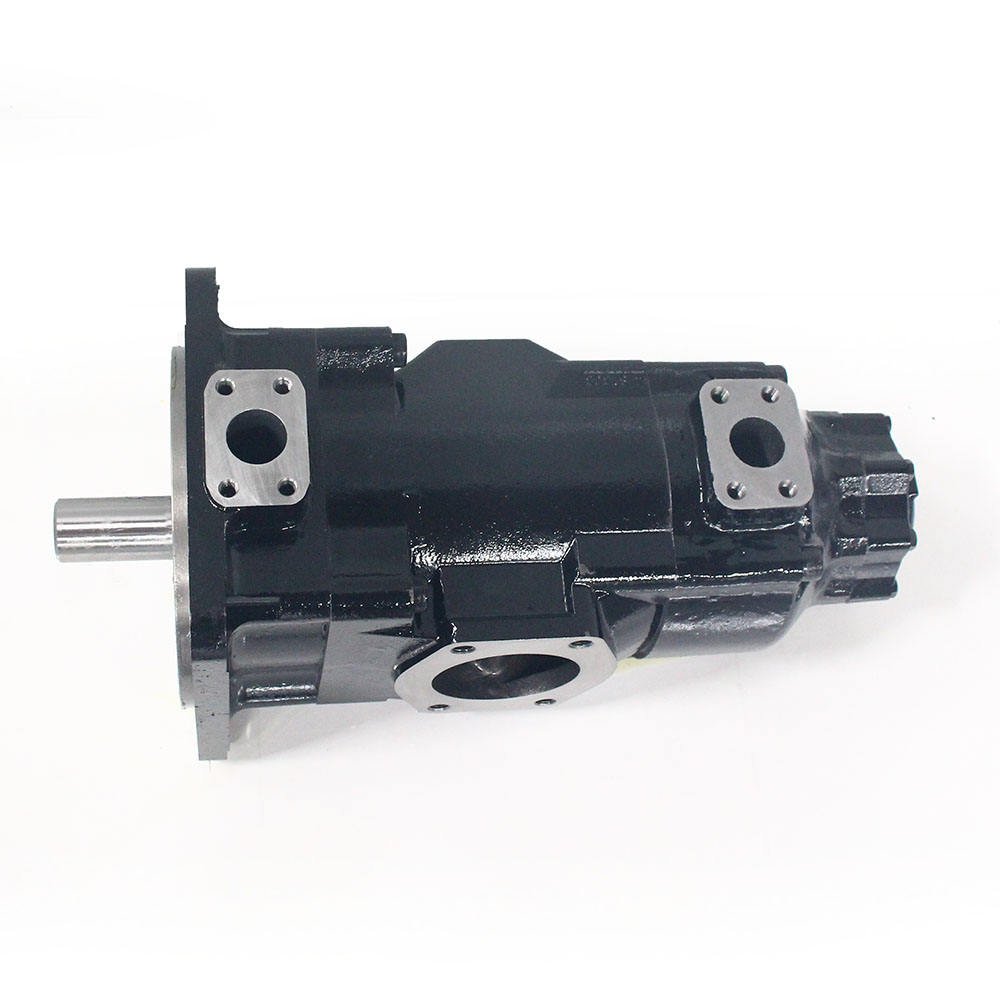

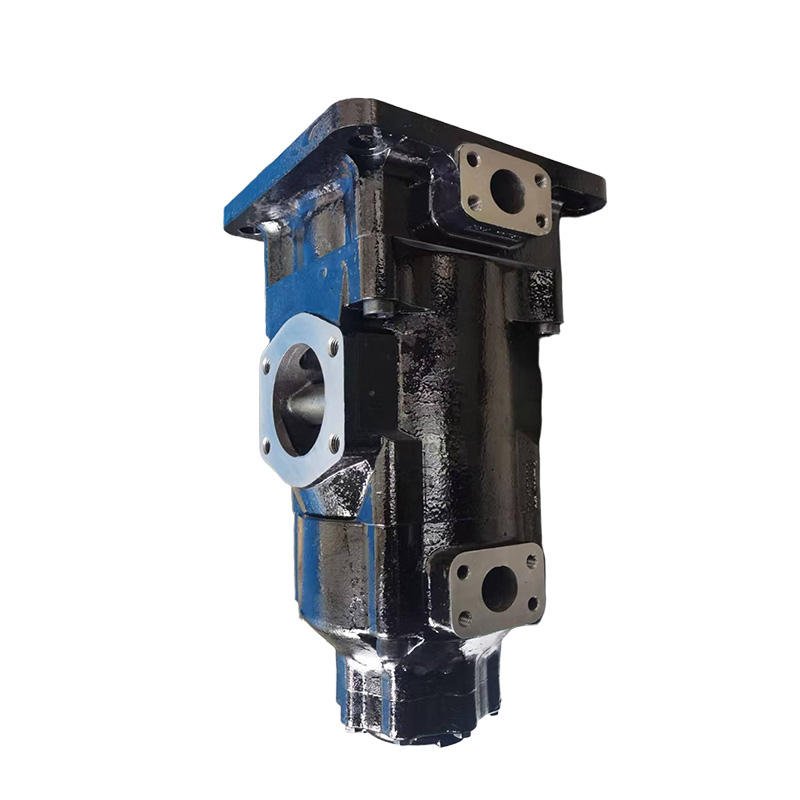

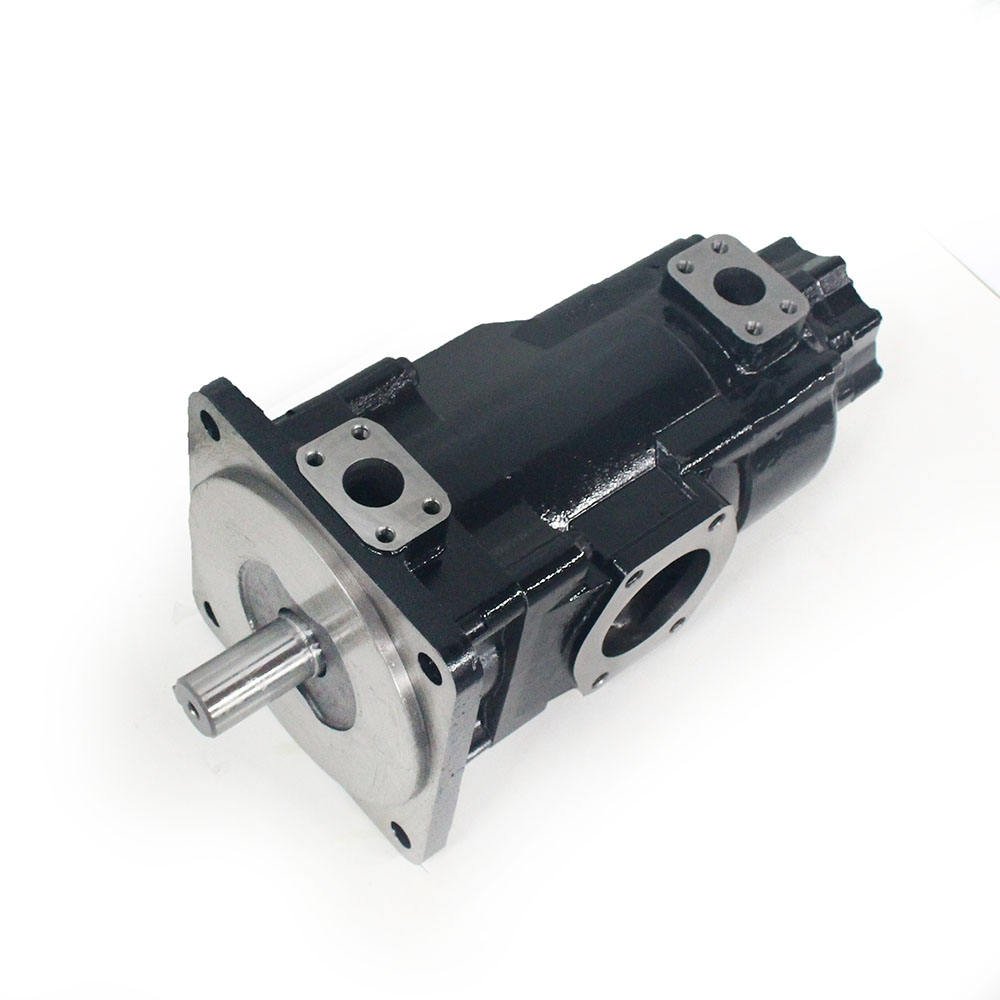

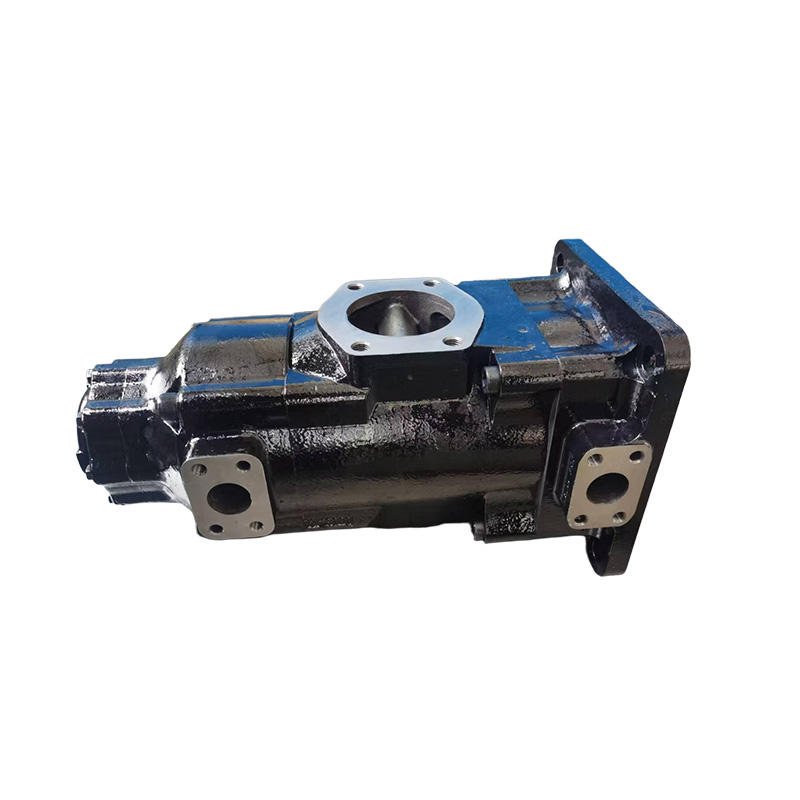

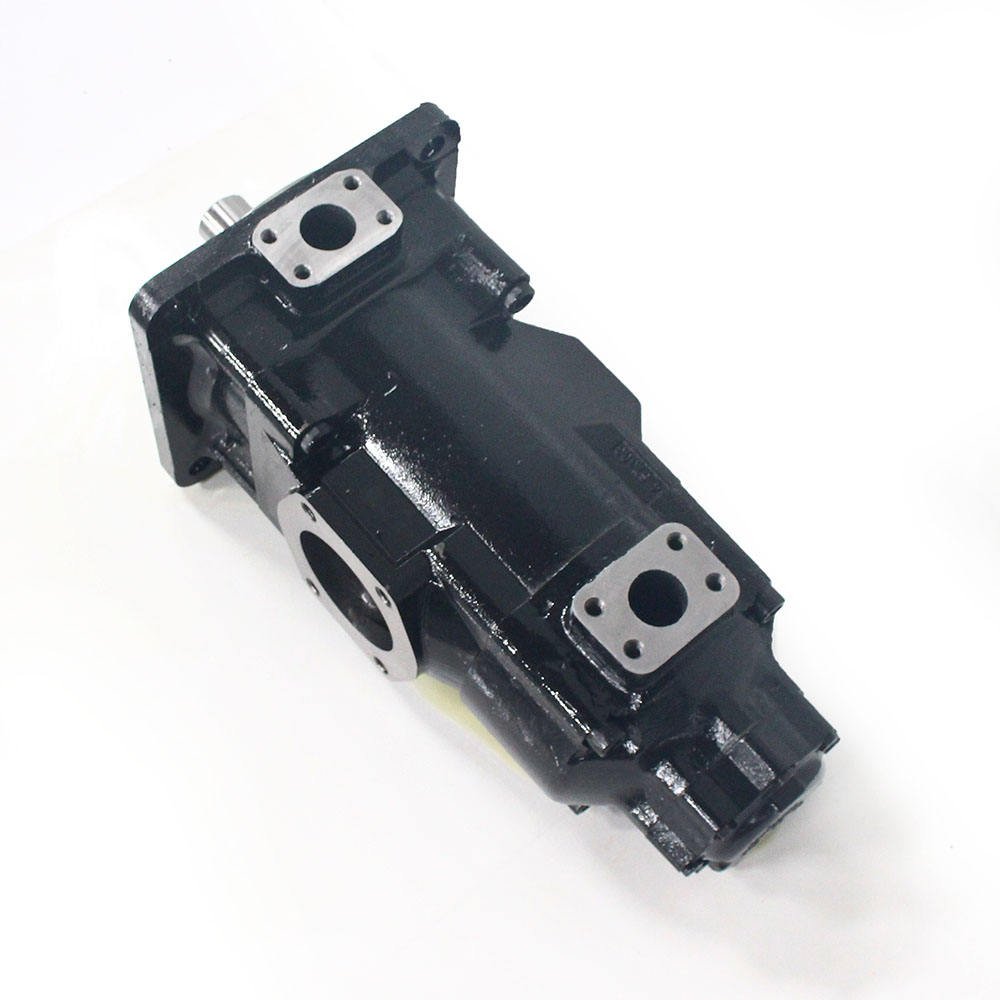

Heavy-duty factory-direct aftermarket T7EEC-052-052-025 Triple Hydraulic Vane Pump, meticulously engineered as a 100% precision interchangeable replacement for premium Denison / Parker fluid power systems. Integrating two heavy-capacity 052 cartridges (164.0 ml/r × 2) and one 025 high-pressure auxiliary cartridge (79.3 ml/r) onto a single high-tensile drive shaft, this powerhouse delivers massive synchronized multi-circuit flow management for heavy-duty rotary drilling rigs, mining machinery, and complex industrial systems under pressures up to 240 bar.
Key Highlights
-
100% Drop-In Global Compatibility: Built strictly to original Denison T7EEC frame metrics and SAE standards. Flange footprints, high-torque shaft specifications, and multi-port interfaces drop directly into your existing hydraulic layout with zero structural modifications.
-
Massive Multi-Circuit Efficiency: By driving three distinct oil flows independently out of one compact package, it effortlessly powers multiple heavy actuators simultaneously (e.g., severe crawler travel, rotary head drilling, and quick auxiliary cooling feeds) without interference or pressure drop.
-
Advanced Upgraded T7 Bimetal Cam Rings: Engineered with Denison’s latest micro-compensated floating side plates and high-tensile 12-vane cartridge architecture. Greatly enhances volumetric tracking under high stress, limits heat saturation, and handles boundary lubrication perfectly.
-
Industrial-Grade Acoustic Insulation: Despite its enormous combined displacement capability, the signature intra-vane geometry drastically limits inner turbulence and flow pulsations, delivering an ultra-low noise signature ideal for strict environmental job sites.
Technical Parameters Matrix
| Technical Parameter | Specification Data |
|---|---|
| Core Model Sizing | T7EEC-052-052-025 / T7EEC 052 052 025 |
| Brand Design Compatibility | Denison / Parker Hannifin Fluid Power |
| Pump Configuration Type | Triple / Three-Stage High-Pressure Vane Pump |
| P1 (Shaft End) Displacement | Size 052 (Approx. 164.0 ml/rev) |
| P2 (Center Stage) Displacement | Size 052 (Approx. 164.0 ml/rev) |
| P3 (Cover End) Displacement | Size 025 (Approx. 79.3 ml/rev) |
| Maximum Operating Pressure | Up to 240 bar / 3500 PSI |
| Product Warranty | 12 Months Factory Warranty & Lifetime Engineering Support |
FAQ
Q1: Can you supply separate internal cartridges if I only need to overhaul my existing T7EEC pump? A: Yes, absolutely. We support global drilling fleets with both fully completed ready-to-run T7EEC triple pump assemblies and individual internal components. You can order the T7E-052 replacement cartridge kits, the T7C-025 rear kit, or high-pressure shaft seal overhaul groups directly from our stock for immediate field repairs.

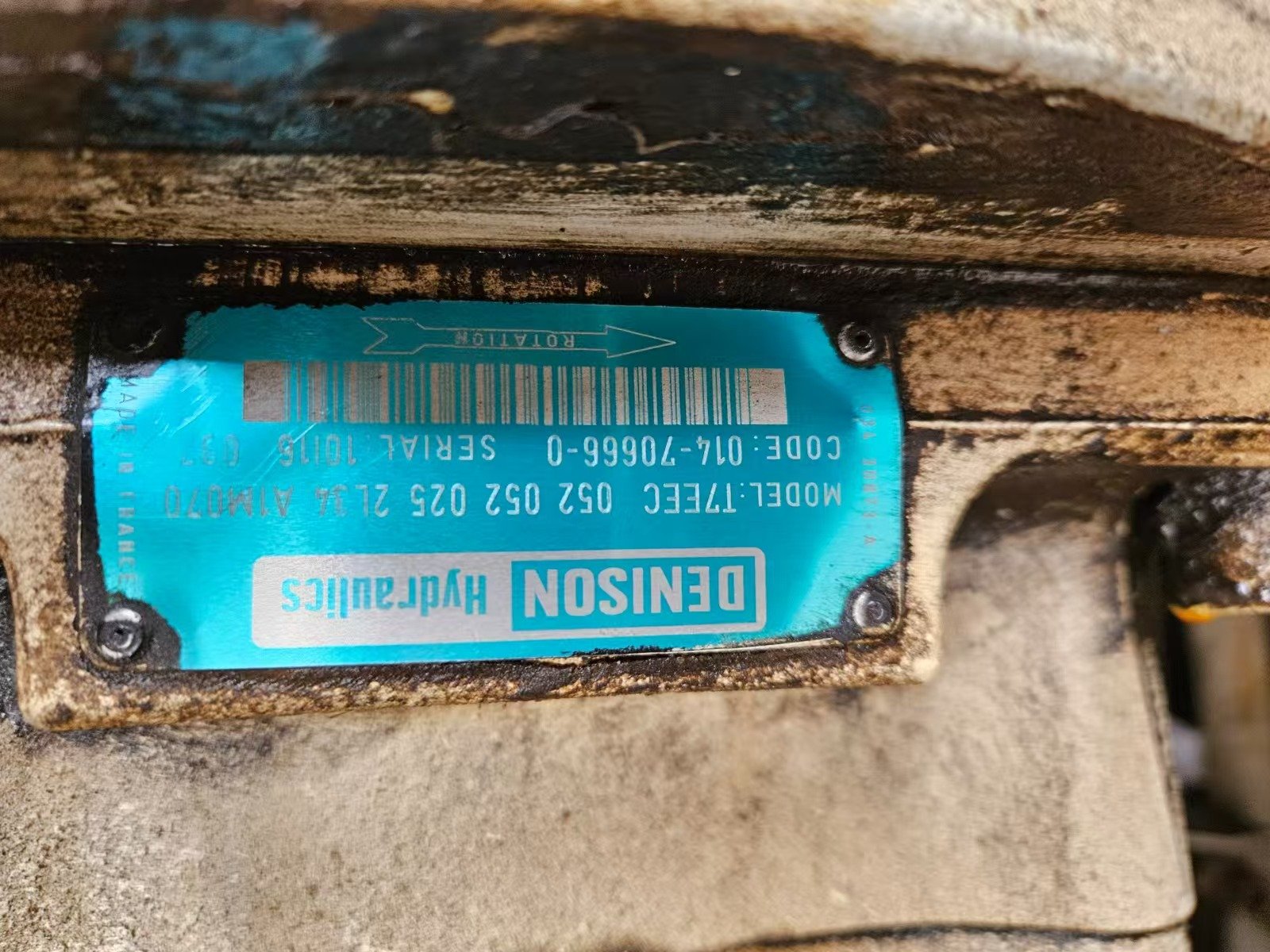

Q2: How can I confirm the exact shaft and port configuration matching my heavy machinery tag? A: Since T7EEC models can have various shaft options (splined or keyed) and alternate inlet/outlet port angles, we highly recommend sharing a quick snapshot of your current Denison nameplate or the machine’s part manual with our engineering desk. We will factory-configure and test the unit to mirror your exact directional and mounting requirement before shipping in heavy export wooden crates.
