Understanding a variable displacement axial piston pump diagram is essential for hydraulic system designers, fleet maintenance technicians, and equipment operators. A schematic diagram illustrates how internal components—such as the swashplate, servo piston, and compensator control block—work together to adjust fluid flow on demand.
By varying output displacement while keeping drive shaft speed constant, these pumps optimize energy consumption. Furthermore, they operate smoothly under high working pressures from 210 bar to 350+ bar with peak pressure ratings reaching 420 bar.
This technical guide breaks down the core elements of a variable displacement axial piston pump diagram, key application scenarios across heavy machinery, and how direct-factory supply from Guangdong Haozheng Hydraulic Equipment Co., Ltd. supports global fluid power operations.
1. Key Components in a Variable Displacement Axial Piston Pump Diagram
A standard technical schematic or cutaway diagram of a variable displacement axial piston pump illustrates five main functional assemblies:
[System Pressure / Pilot Load Signal]
│
▼
[Compensator Control Valve]
│
▼
[Servo Adjustment Piston]
│
▼
[Swashplate Angle Adjustment (α)] ──> [Piston Stroke Expansion] ──> [Variable Output Flow]
Essential Schematic Components:
- Swashplate & Cradle Bearings: The diagram shows the tilting swashplate. When the swashplate angle changes, piston stroke length expands or contracts. As a result, fluid flow increases or decreases.
- Cylinder Block & Reciprocating Pistons: Pistons sit parallel to the drive shaft inside the cylinder barrel. Slipper shoes ride along the swashplate surface to convert shaft rotation into linear pumping strokes.
- Valve Plate (Port Plate): The valve plate separates suction and pressure ports. Precision bimetallic sealing faces prevent high-pressure fluid bypass between cylinder bores and system lines.
- Servo Piston & Compensator Block: The control block monitors system pressure drops. Therefore, the servo piston shifts the swashplate automatically to match real-time load requirements.
2. Technical Evaluation & Selection Parameters
When analyzing pump diagrams for machinery builds or field replacements, engineering teams evaluate several critical parameters:
| Technical Parameter | Operational Impact | Industry Benchmarks |
| Displacement Range | Defines maximum volumetric output per shaft revolution | Compact 18 to 45 cc/rev up to heavy industrial 140 to 250+ cc/rev |
| Working Pressure Ratings | Sets continuous vs. peak shock load tolerances | Continuous: 280 to 350 bar, Peak: 400 to 420 bar |
| Control Regulators | Determines how displacement responds to load changes | Load-Sensing (DFR), Pressure Cutoff (DR), Power Limiter (LR) |
| Volumetric Efficiency | Measures actual fluid discharge versus theoretical output | 95% or higher under full operating pressure |
3. Targeted Machinery and Industrial Applications
Variable displacement axial piston pumps provide core fluid power across high-demand heavy machinery worldwide:
[Haozheng Variable Displacement Axial Piston Solutions]
├── Mobile Construction ────> Excavators, Mobile Cranes & Concrete Pump Trucks
├── Industrial Automation ───> Plastic Injection Molding Machines & Stamping Presses
├── Mining & Tunneling ──────> Underground Rock Drill Rigs & Tunnel Boring Machines (TBM)
└── Marine & Port Equipment ─> Deck Winches, Anchor Capstans & Steering Actuators
Application Breakdown:
- Hydraulic Excavators & Cranes: Main hydraulic diagrams feature dual variable pumps (such as Rexroth A10VSO/A4VG, Kawasaki K3V, Komatsu HPV, and CAT SBS series). Consequently, these units supply independent flow to boom, arm, bucket, and swing circuits.
- Injection Molding & Metal Presses: Industrial variable displacement pumps alter displacement during mold clamping, plastic injection, and holding cycles. Therefore, plants save significant electricity during dwell phases.
- Underground Drill Rigs & TBMs: Heavy-duty pumps withstand continuous shock loads, abrasive dust, and continuous high-pressure cycles during underground tunneling.
4. The Haozheng Solution: Direct Manufacturing & Test Bench OEM
Sourcing variable displacement axial piston pumps and replacement parts often presents challenges with long factory lead times, steep OEM price markups, or unverified aftermarket quality.

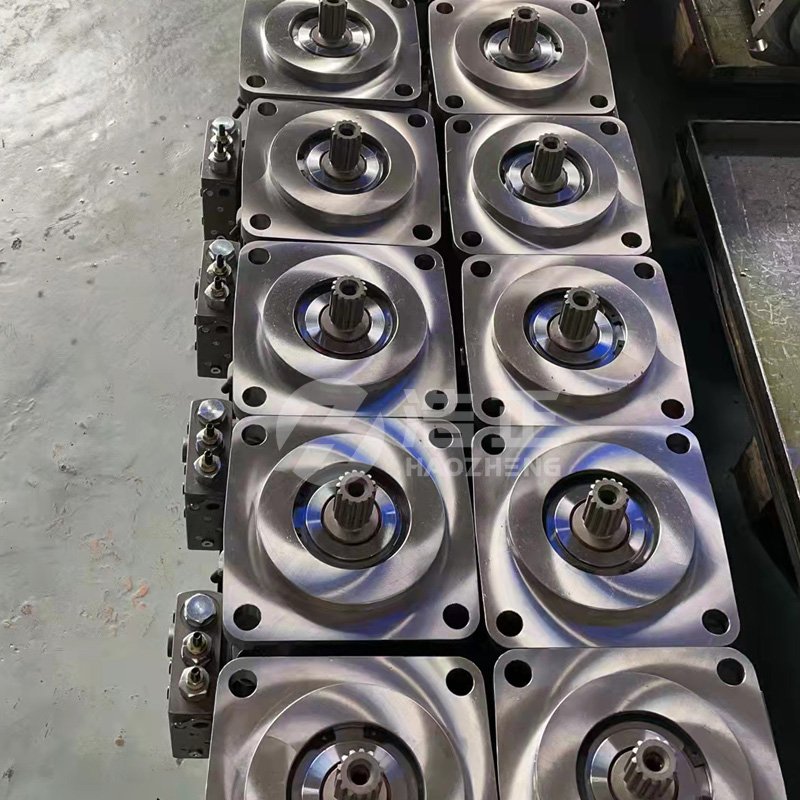

Guangdong Haozheng Hydraulic Equipment Co., Ltd. combines sub-micron precision manufacturing with direct factory distribution. Specifically, we produce complete variable displacement axial piston pumps, hydraulic motors, precision replacement rotating groups (cylinder blocks, pistons, valve plates, swashplates, ball guides), and universal hydraulic test benches (75kW to 320kW series).
[Haozheng Production Infrastructure]
Sub-Micron CNC Grinding ──> Vacuum Heat Treatment ──> Bimetallic Wear Bonding ──> Full Load-Bench Testing
Why Global Partners Choose Guangdong Haozheng:
- 100% Direct Drop-In Interchangeability: Our complete pumps and internal components match OEM mounting dimensions and schematic profiles exactly. For instance, we support Bosch Rexroth (A10VSO, A4VG, A11VO, A7VO), Parker (PV/PD), Eaton Vickers, Sauer-Danfoss, Komatsu, CAT, and Kawasaki.
- Sub-Micron Precision Tolerances: We hold piston-to-bore clearances within 5 to 8 microns. As a result, our components eliminate internal fluid bypass and maintain volumetric efficiency above 95%.
- Bimetallic Wear Metallurgy: Cylinder barrel faces feature vacuum-heat-treated alloy steel with high-grade bronze bonding. Therefore, parts resist micro-cavitation and wear under continuous 350+ bar loads.
- Mandatory Load-Bench Certification: We test every pump unit up to 350–420 bar on computerized test stands before export.
- Proprietary Test Bench Supply: In addition, Haozheng designs and builds automated universal hydraulic test benches with digital data logging for repair facilities worldwide.
Conclusion
Reading a variable displacement axial piston pump diagram helps engineers optimize hydraulic circuit efficiency, diagnose wear, and perform proper maintenance. Therefore, selecting high-precision components backed by full-load testing ensures maximum equipment productivity. Partnering directly with Guangdong Haozheng Hydraulic Equipment Co., Ltd. delivers factory-direct engineering excellence, 100% drop-in component compatibility, and fast global delivery.
